Port Scanner
What is port scanning and how to conduct one ?
Let us begin by understanding what is port scanning ?
Port scanning is a network security technique, mainly for reconnaissance, which is conducted to discover all active services and open ports on a target host. Although often associated with preparing for an attack, these methods are also commonly used by ethical hackers and red teaming professionals to find and patch vulnerabilities that could be exploited.
Lets go back basics for a moment, What are even these Ports ?
Ports serve as virtual endpoints for network communication. To facilitate these communications, computers and network devices utilize two primary transport protocols: TCP and UDP. Each of these protocols is allocated 65,536 potential communication points, referred to as Ports. Therefore, if both TCP and UDP are enabled on a device, the total number of communication points is double that amount.
Attackers leverage various techniques to overwhelm servers with connection requests that lead to port exhaustion to render a service unavailable. Attackers frequently use port scanning tools to conduct initial discovery needed for their operations.
Is port scanning illegal ?
While not inherently illegal in most countries it is considered unethical and in many regions may lead to fines, civil lawsuits etc. Many ISPs prohibit this activity and may employ ingress filtering techniques to block such attempts as it may lead to a violation of its fair/acceptable usage policies. Could lead to further ramifications too. Hence highly encouraged to not involve in such activity unless you are a red teamer running such scans to identify and fix vulnerabilities within your system before an attacker could get to it.
Where do i find these tools ?
There are plenty on the internet. I am demonstrating one such example for this blog.
RustScan
I am using RustScan for a demonstration here, Its a great great tool for port scanning. Written in rust, it allows super fast scanning.
Follow this GitHub link for instructions - https://github.com/bee-san/RustScan
Image Source - GitHub

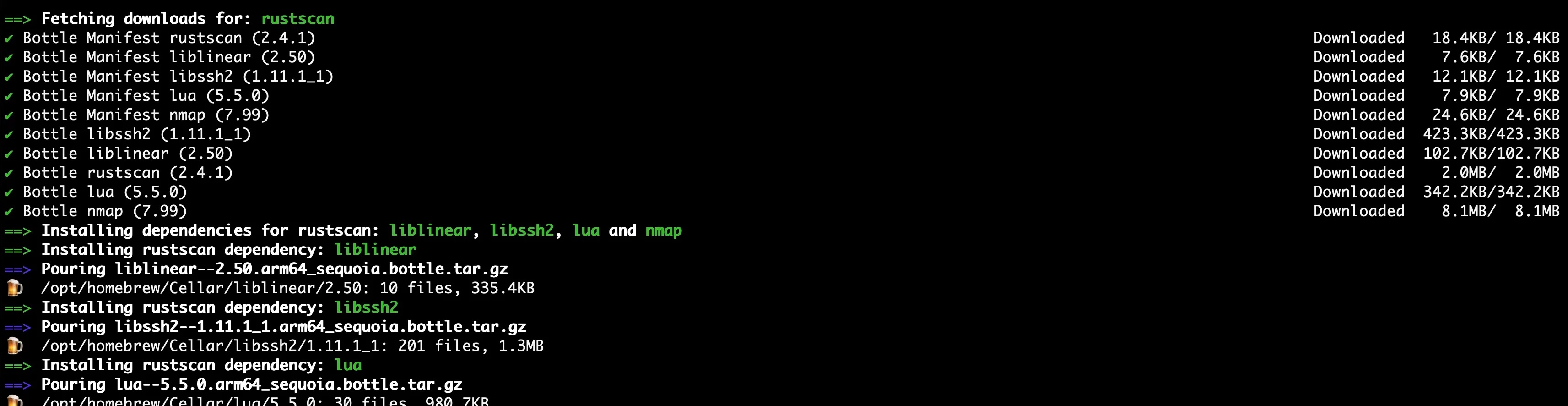

MacOS Installation -
brew install rustscan
Lets confirm the installation is successful
rustscan --version
# Response
rustscan 2.3.0
Let us first understand how to use RustScan tool by running the help command. Response below -
rustscan 2.3.0
Fast Port Scanner built in Rust. WARNING Do not use this program against sensitive infrastructure since the specified
server may not be able to handle this many socket connections at once. - Discord <http://discord.skerritt.blog> -
GitHub <https://github.com/RustScan/RustScan>
USAGE:
rustscan [OPTIONS] [-- <COMMAND>...]
OPTIONS:
-a, --addresses <ADDRESSES> A comma-delimited list or newline-delimited file of separated CIDRs, IPs,
or hosts to be scanned
-p, --ports <PORTS> A list of comma separated ports to be scanned. Example: 80,443,8080
-r, --range <RANGE> A range of ports with format start-end. Example: 1-1000
-n, --no-config Whether to ignore the configuration file or not
--no-banner Hide the banner
-c, --config-path <CONFIG_PATH> Custom path to config file
-g, --greppable Greppable mode. Only output the ports. No Nmap. Useful for grep or
outputting to a file
--accessible Accessible mode. Turns off features which negatively affect screen
readers
--resolver <RESOLVER> A comma-delimited list or file of DNS resolvers
-b, --batch-size <BATCH_SIZE> The batch size for port scanning, it increases or slows the speed of
scanning. Depends on the open file limit of your OS. If you do 65535 it
will do every port at the same time. Although, your OS may not support
this [default: 4500]
-t, --timeout <TIMEOUT> The timeout in milliseconds before a port is assumed to be closed
[default: 1500]
--tries <TRIES> The number of tries before a port is assumed to be closed. If set to 0,
rustscan will correct it to 1 [default: 1]
-u, --ulimit <ULIMIT> Automatically ups the ULIMIT with the value you provided
--scan-order <SCAN_ORDER> The order of scanning to be performed. The "serial" option will scan
ports in ascending order while the "random" option will scan ports
randomly [default: serial] [possible values: serial, random]
--scripts <SCRIPTS> Level of scripting required for the run [default: default] [possible
values: none, default, custom]
--top Use the top 1000 ports
-e, --exclude-ports <EXCLUDE_PORTS> A list of comma separated ports to be excluded from scanning. Example:
80,443,8080
-x, --exclude-addresses <EXCLUDE_ADDRESSES> A list of comma separated CIDRs, IPs, or hosts to be excluded from
scanning
--udp UDP scanning mode, finds UDP ports that send back responses
-h, --help Print help
-V, --version Print version
Sample Scan
I am intentionally running a scan against a machine/instance i created on Linode/Akamai cloud.
I created a Linux VM in Mumbai region and intentionally opened it to all TCP/UDP comms. PLEASE DO NOT TRY THIS IN ANY ENVIRONMENT UNLESS ITS A LAB AS IT CAN LEAD TO SIGNIFICANT RAMIFICATIONS ON YOUR PRODUCTION ENVIRONMENT
Lets log into the machine and make it completely vulnerable to all kinds of scanning -
sudo apt update
sudo apt install portsentry
Lets enable the following TCP and UDP modes -
sudo nano /etc/default/portsentry
# Ensure it contains these lines
TCP_MODE="tcp"
UDP_MODE="udp"
Lets modify the configuration now -
sudo nano /etc/portsentry/portsentry.conf
Copy the below block and replace the portsentry.conf file with it
#######################
# Port Configurations#
#######################
TCP_PORTS="1,7,9,11,13,15,17,19,21,23,25,37,42,43,49,70,79,80,88,107,109,110,111,113,115,119,135,139,143,161,162,179,194,389,443,445,465,512,513,514,515,520,540,543,544,548,554,587,631,635,636,700,749,873,902,993,995"
UDP_PORTS=""
# ADVANCED MODES (DISABLED FOR THIS METHOD)
# We are using classic mode, not advanced stealth.
#ADVANCED_PORTS_TCP="10000"
#ADVANCED_EXCLUDE_TCP="22,53,113,139"
######################
# Configuration Files#
######################
IGNORE_FILE="/etc/portsentry/portsentry.ignore"
HISTORY_FILE="/var/lib/portsentry/portsentry.history"
BLOCKED_FILE="/var/lib/portsentry/portsentry.blocked"
###################
# Response Options#
###################
# We must ensure all active blocking is disabled.
# 0 = Do not block.
BLOCK_UDP="0"
BLOCK_TCP="0"
# (All KILL_ROUTE options must remain commented out)
# (All KILL_HOSTS_DENY options must remain commented out)
#####################
# Scan trigger value#
#####################
SCAN_TRIGGER="0"
EOF
Add the following ignore condition -
# Create a mandatory ignore file (even if UFW is off)
cat <<EOF | sudo tee /etc/portsentry/portsentry.ignore
127.0.0.1/32
0.0.0.0/32
::1/128
EOF
Restart Portsentry -
sudo systemctl start portsentry
Lets confirm if it was successful -
sudo ss -tulpn
The output should be a massive list of ports. Now that this is a success lets run rustscan against this vulnerable machine.
Sample Response -
sudo ss -tulpn
Netid State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
udp UNCONN 0 0 127.0.0.54:53 0.0.0.0:* users:(("systemd-resolve",pid=442,fd=16))
udp UNCONN 0 0 127.0.0.53%lo:53 0.0.0.0:* users:(("systemd-resolve",pid=442,fd=14))
tcp LISTEN 0 4096 127.0.0.53%lo:53 0.0.0.0:* users:(("systemd-resolve",pid=442,fd=15))
tcp LISTEN 4 5 0.0.0.0:8888 0.0.0.0:* users:(("python3",pid=4094,fd=3))
tcp LISTEN 0 5 0.0.0.0:700 0.0.0.0:* users:(("portsentry",pid=4425,fd=51))
tcp LISTEN 0 5 0.0.0.0:749 0.0.0.0:* users:(("portsentry",pid=4425,fd=52))
tcp LISTEN 0 5 0.0.0.0:543 0.0.0.0:* users:(("portsentry",pid=4425,fd=43))
tcp LISTEN 0 5 0.0.0.0:540 0.0.0.0:* users:(("portsentry",pid=4425,fd=42))
tcp LISTEN 0 5 0.0.0.0:520 0.0.0.0:* users:(("portsentry",pid=4425,fd=41))
tcp LISTEN 0 5 0.0.0.0:515 0.0.0.0:* users:(("portsentry",pid=4425,fd=40))
tcp LISTEN 0 5 0.0.0.0:514 0.0.0.0:* users:(("portsentry",pid=4425,fd=39))
tcp LISTEN 0 5 0.0.0.0:513 0.0.0.0:* users:(("portsentry",pid=4425,fd=38))
tcp LISTEN 0 5 0.0.0.0:512 0.0.0.0:* users:(("portsentry",pid=4425,fd=37))
tcp LISTEN 0 5 0.0.0.0:554 0.0.0.0:* users:(("portsentry",pid=4425,fd=46))
tcp LISTEN 0 5 0.0.0.0:544 0.0.0.0:* users:(("portsentry",pid=4425,fd=44))
tcp LISTEN 0 5 0.0.0.0:548 0.0.0.0:* users:(("portsentry",pid=4425,fd=45))
tcp LISTEN 0 5 0.0.0.0:587 0.0.0.0:* users:(("portsentry",pid=4425,fd=47))
tcp LISTEN 0 5 0.0.0.0:635 0.0.0.0:* users:(("portsentry",pid=4425,fd=49))
tcp LISTEN 0 5 0.0.0.0:636 0.0.0.0:* users:(("portsentry",pid=4425,fd=50))
tcp LISTEN 0 5 0.0.0.0:631 0.0.0.0:* users:(("portsentry",pid=4425,fd=48))
tcp LISTEN 0 5 0.0.0.0:902 0.0.0.0:* users:(("portsentry",pid=4425,fd=54))
tcp LISTEN 0 5 0.0.0.0:995 0.0.0.0:* users:(("portsentry",pid=4425,fd=56))
tcp LISTEN 0 5 0.0.0.0:993 0.0.0.0:* users:(("portsentry",pid=4425,fd=55))
tcp LISTEN 0 5 0.0.0.0:873 0.0.0.0:* users:(("portsentry",pid=4425,fd=53))
tcp LISTEN 0 5 0.0.0.0:139 0.0.0.0:* users:(("portsentry",pid=4425,fd=27))
tcp LISTEN 0 5 0.0.0.0:143 0.0.0.0:* users:(("portsentry",pid=4425,fd=28))
tcp LISTEN 0 5 0.0.0.0:135 0.0.0.0:* users:(("portsentry",pid=4425,fd=26))
tcp LISTEN 0 5 0.0.0.0:179 0.0.0.0:* users:(("portsentry",pid=4425,fd=31))
tcp LISTEN 0 5 0.0.0.0:162 0.0.0.0:* users:(("portsentry",pid=4425,fd=30))
tcp LISTEN 0 5 0.0.0.0:161 0.0.0.0:* users:(("portsentry",pid=4425,fd=29))
Finally we run a port scan -
rustscan -a 172.237.41.110
A successful scan would look like the sample below -
rustscan -a 172.237.41.110
.----. .-. .-. .----..---. .----. .---. .--. .-. .-.
| {} }| { } |{ {__ {_ _}{ {__ / ___} / {} \ | `| |
| .-. \| {_} |.-._} } | | .-._} }\ }/ /\ \| |\ |
`-' `-'`-----'`----' `-' `----' `---' `-' `-'`-' `-'
The Modern Day Port Scanner.
________________________________________
: http://discord.skerritt.blog :
: https://github.com/RustScan/RustScan :
--------------------------------------
TCP handshake? More like a friendly high-five!
[~] The config file is expected to be at "/Users/mbilal/.rustscan.toml"
[!] File limit is lower than default batch size. Consider upping with --ulimit. May cause harm to sensitive servers
[!] Your file limit is very small, which negatively impacts RustScan's speed. Use the Docker image, or up the Ulimit with '--ulimit 5000'.
Open 172.237.41.110:53
Open 172.237.41.110:1
Open 172.237.41.110:9
Open 172.237.41.110:15
Open 172.237.41.110:23
Open 172.237.41.110:7
Open 172.237.41.110:11
Open 172.237.41.110:13
Open 172.237.41.110:21
Open 172.237.41.110:19
Open 172.237.41.110:25
Open 172.237.41.110:37
Open 172.237.41.110:17
Open 172.237.41.110:42
Open 172.237.41.110:43
Open 172.237.41.110:22
Open 172.237.41.110:49
Open 172.237.41.110:70
Open 172.237.41.110:110
Open 172.237.41.110:113
Open 172.237.41.110:107
Open 172.237.41.110:115
Open 172.237.41.110:88
Open 172.237.41.110:119
Open 172.237.41.110:111
Open 172.237.41.110:79
Open 172.237.41.110:80
Open 172.237.41.110:109
Open 172.237.41.110:143
Open 172.237.41.110:135
Open 172.237.41.110:139
Open 172.237.41.110:161
Open 172.237.41.110:162
Open 172.237.41.110:194
Open 172.237.41.110:179
Open 172.237.41.110:389
Open 172.237.41.110:443
Open 172.237.41.110:445
Open 172.237.41.110:465
Open 172.237.41.110:512
Open 172.237.41.110:513
Open 172.237.41.110:520
Open 172.237.41.110:515
Open 172.237.41.110:514
Open 172.237.41.110:540
Open 172.237.41.110:548
..
...
....
Note : This blog is for educational purpose only, not to encourage any illegal port scanning activity. Thank you for reading.
